High-Precision Tube Laser Cutting & Automated Pipe Processing
Haden engineers advanced tube laser cutting machines and automated processing cells for round, square, rectangular and structural profiles—integrating precision cutting, intelligent clamping, material handling and production automation around your tube fabrication requirements.
* Available tube diameter, tail length, bevel capability and automation configuration vary by machine model, material, profile geometry and production requirements.
Addressing Tube Cutting Challenges with CNC Laser Automation
Traditional pipe fabrication relies on fragmented sawing, drilling, punching, and deburring setups that inflate labor overhead and lead times. Haden modernizes the metal tube fabrication workflow by integrating multi-axis laser cutting machines into a continuous, high-efficiency production cell.
Legacy Tube Processing Bottlenecks
- • Fragmented Multi-Stage Workstations
Routing workpieces across separate bandsaws, drill presses, punch tooling, and deburring stations causes severe WIP buildup and logistics delays.
- • Mechanical Deformation & Heavy Burrs
Physical blade contact and mechanical punch dies crush thin-wall profiles, leave heavy flash, and demand labor-intensive secondary edge grinding.
- • Cumulative Clamping & Layout Errors
Repeated manual measuring, scribing, and re-clamping across multiple machines compound dimensional tolerance errors and joint mismatches.
- • Severe Geometric Limitations
Complex intersecting saddle joints, fish-mouth cuts, variable bevels, and micro-hole arrays require expensive custom tooling or manual milling.
Haden Integrated Laser Cutting Breakthrough
- ✓ Single-Setup All-in-One Execution
Consolidates cut-to-length, hole perforation, miter slotting, weld beveling, and slot-and-tab interlocking into a single high-speed laser pass.
- ✓ Non-Contact Precision Processing
Zero mechanical cutting force preserves structural integrity in round, square, and open profiles, delivering clean, dross-free edges ready for assembly.
- ✓ Intelligent CNC Trajectory & Weld Seam Tracking
High-speed optical sensors automatically locate tube weld seams, detect geometric deviation, and apply dynamic coordinate compensation in real time.
- ✓ Total CAD/CAM Geometric Freedom
Direct 3D STEP/IGES model importing enables instant production of complex intersecting geometries, variable-angle bevels, and custom structural profiles without hard tooling.
Quantifiable ROI & Automatic Pipe Cutting Efficiency Gains
Consolidates multiple secondary machining stations into a single automated operation powered by CNC tube laser cutting machines.
Optimized common-line nesting algorithms paired with dynamic multi-chuck positioning deliver ultra-short remnant tailing.
Automated material infeed, part sorting, and zero-tooling setups eliminate manual layout marking and secondary grinding.
Micron-level beam positioning and repeatable servo-driven chucking guarantee tight joint tolerances for downstream robotic welding.
Haden reshapes the industrial metal tube fabrication workflow by replacing disjointed mechanical processes with highly integrated automated systems. By combining cutoff, perforation, miter slotting, deburring, and 3D weld beveling into a single continuous sequence, Haden equipment eliminates work-in-progress transit, eradicates operator fixturing errors, and drastically reduces unit fabrication costs. Whether utilizing dedicated tube processors or dual-use sheet and tube laser cutting machines for structural tubing, automotive exhaust lines, or custom furniture frames, Haden delivers the high-speed pipe cutting efficiency, edge precision, and material savings essential for modern lean manufacturing.
Dedicated Tube Laser Cutting Machine Systems & Multi-Profile Equipment Matrix
Engineered for structural steel contractors, contract fabricators, and high-volume manufacturing facilities, Haden provides a versatile spectrum of CNC laser cutting machines engineered for pipe and profile processing. Explore dedicated production models, space-saving sheet and tube laser cutter platforms, heavy-duty tube processing equipment, and linear-driven micro-tubing cells matched to your specific profile envelope, wall thickness, and throughput requirements.
Dual-Chuck Tube Processing
Dedicated rotary architecture for continuous tube profiling, cutoff and complex feature cutting.
Professional Dedicated Tube Laser Cutting Machine
The Haden T-Series is purpose-built for high-speed cutoff, contour profiling, and complex hole cutting on round pipes, square tubes, rectangular hollow sections, and oval profiles. Equipped with synchronized full-stroke pneumatic chucks and dual servo-driven rack systems, this tube laser cutting machine minimizes rotational inertia to deliver rapid acceleration across dense nesting programs without causing tube surface scratching or wall distortion.
Core Engineering Capabilities
- ✓High-Speed Flying Cut: Rapid non-stop continuous laser pulsing
- ✓Self-Centering Chucks: Constant clamping pressure preserves roundness
- ✓Integrated Internal Spatter Guard: Ensures dross-free inner tube walls
- ✓Short-Tail Remnant Control: Advanced chuck pass-through saves raw stock
| Specification Metric | Standard Value Range | Engineering Option |
|---|---|---|
| Rotary Chuck Capacity | Round: Φ20–230mm | Square: 20×20–160×160mm | Extended Φ260mm Heavy Chuck Kit |
| Laser Resonator Power | 1.5 kW – 6.0 kW Continuous Fiber Source | Up to 8.0 kW High-Throughput Package |
| Max Raw Pipe Length | 6,500 mm / 9,000 mm | Automatic Bundle Feed Integration |
| Positioning Repeatability | ±0.03 mm per Axis Stroke | Laser Interferometer Calibrated |
Sheet + Tube Processing Platform
Shared laser platform combining flat-sheet processing and rotary tube cutting within one production system.
Multi-Function Sheet and Tube Laser Cutter
Engineered specifically for custom fabrication job shops, agricultural machinery builders, and structural assemblies, the Haden ST-Series balances high-efficiency sheet plate nesting with an integrated side rotary axis. This flexible sheet and tube laser cutting machine eliminates the need for separate machines, lowering initial capital expenditure while providing instant switching between 2D flat plate profiling and round, square, or rectangular pipe cutting.
Core Engineering Capabilities
- ✓One-Key Mode Switching: Coordinate switching between plate and tube
- ✓Heavy Annealed Gantry: Structural damping for stable motion
- ✓Unified CAD/CAM Suite: Shared workflow for mixed job lots
- ✓Plate & Pipe Processing: Flexible mixed-production capability
| Specification Metric | Standard Value Range | Engineering Option |
|---|---|---|
| Flat Sheet Table Area | 3000 × 1500 mm / 4000 × 2000 mm | Pallet Shuttle Table |
| Side Rotary Chuck Capacity | Round: Φ20–220mm | Square: 20×20–150×150mm | 3,000mm / 6,000mm Side Rail |
| Laser Resonator Range | 3,000W – 12,000W | Auto-Focus Cutting Head |
| Max Simultaneous Speed | 120 m/min Composite Traversing Velocity | Dynamic Capacitive Height Tracker |
Large-OD + Multi-Axis Bevel Cutting
Heavy-duty rotary architecture for large structural profiles, heavy-wall tube and weld-preparation geometry.
Heavy-Duty Tube Processing Equipment for Large Pipes
Engineered for spatial trusses, construction machinery booms, commercial building columns, and heavy pipelines, the Haden HD-Series processes heavy-wall circular pipes, large square sections, H-beams, and C-channels up to 12 meters in length. Multi-chuck clamping and multi-axis cutting support complex weld-preparation geometries within one automated setup.
Core Engineering Capabilities
- ✓3D Bevel Cutting: Integrated weld-preparation geometry
- ✓Multi-Chuck Synchronization: Support for heavy long profiles
- ✓Open Profile Compatibility: I-beams, H-beams and channels
- ✓Dynamic Supports: Stabilization during rotary processing
| Specification Metric | Standard Value Range | Engineering Option |
|---|---|---|
| Diameter Clamping Range | Φ50–350mm / Φ50–500mm | Structural Channel Jaw Kit |
| Laser Resonator Range | 6,000W – 12,000W | High-Pressure Assist Gas |
| Max Single Tube Weight | Up to 1,500 kg | Reinforced Hydraulic Infeed |
| Bevel Angle Envelope | ±45° Five-Axis Kinematics | Intersecting-Line Processing |
Micro-Tube Cutting Architecture
Compact direct-drive architecture designed for small diameter and thin-wall precision tube applications.
High-Speed Precision Micro-Tube Laser Cutter
Developed for precision tubular components, instruments, sensors, and automotive fluid-line applications, the Haden M-Series focuses on small-diameter, thin-wall tube processing. Direct-drive motion architecture supports fine slots, holes and profile features while minimizing mechanical backlash.
Core Engineering Capabilities
- ✓Direct Linear Motor Drive: High-response precision motion
- ✓Wet & Dry Cutting: Process configuration for thin-wall tubing
- ✓Fine Pulse Processing: Controlled heat input for small features
- ✓Automated Feeding: Continuous small-tube production options
| Specification Metric | Standard Value Range | Engineering Option |
|---|---|---|
| Diameter Clamping Range | Φ2.0mm – Φ50mm | Precision Collet Adapters |
| Laser Resonator Options | 1,000W – 3,000W | Application-Specific Laser Source |
| Wall Thickness Capability | 0.10 mm – 3.0 mm | Thermal Compensation Options |
| Repeat Positioning Precision | ±0.005 mm | Optical Linear Scale Feedback |
Equipment Selection Framework & Operational Envelope Comparison
Compare key technical parameters side-by-side to match machine kinematic capabilities, laser resonator wattage, and automation integration with your production requirements.
| Series Model | Primary Application Focus | Diameter Envelope | Power Envelope | Chuck Mechanism | Automation Compatibility |
|---|---|---|---|---|---|
| Haden T-Series Pro | General Tube Fabrication | Φ20 – 230 mm | 1.5 – 6.0 kW | Dual Pneumatic Chucks | Automatic Bundle Feeder |
| Haden ST-Series Hybrid | Mixed Sheet + Tube Production | Φ20 – 220 mm + Sheet | 3.0 – 12.0 kW | Side Rotary Axis | Infeed Roller Track |
| Haden HD-Series Heavy | Large Structural Profiles | Φ50 – 500 mm | 6.0 – 12.0 kW | Multi-Chuck Heavy System | Hydraulic Staging |
| Haden M-Series Precision | Small-Diameter Precision Tubing | Φ2.0 – 50 mm | 1.0 – 3.0 kW | Precision Collet System | Automated Tube Loader |
Full Profile Compatibility and Advanced 3D Laser Cutting Processes
Haden tube processing systems engineer ultimate geometric versatility into every production cycle, handling standard hollow sections, asymmetrical structural profiles, and complex 3D intersecting contours with micron-level precision and unmatched throughput on dedicated tube laser cutting machines.
Standard Closed Profile Processing
High-speed fly cutting, rapid contour piercing, and burr-free micro-hole perforation across round, square, rectangular, and flat-oval tubes. Dynamic feed management guarantees dross-free edge quality across diverse wall thicknesses.
Dimensional Tolerance: ±0.05 mm
Surface roughness: Ra 0.8–1.6 µm
Open Sections and Custom Profiles
Uncompromised contouring flexibility for C-channels, U-channels, angle iron (L-profiles), H-beams, and custom aluminum extrusions. Non-contact optical centering and profile-adaptive trajectory control ensure repeatable cut consistency.
Profile Contour Accuracy: ±0.10 mm
Adaptive library: 16+ open & asymmetric shapes
±45-Degree Five-Axis 3D Beveling
Single-pass execution of precision V, Y, K, and continuous variable-angle transition bevels. Produces ready-to-weld edge preparations on structural pipe ends, completely eliminating secondary manual chamfering and grinding.
Bevel Angle Range: ±45° Continuous
Weld root gap tolerance: ≤0.15 mm
Complex Intersecting Lines and Truss Nodes
High-precision saddle cuts, offset branch-to-header intersecting contours, and self-locating slot-and-tab joints. Designed for structural tubular space frames, enabling rapid direct-fit assembly without manual fixture layout.
Node Fitting Accuracy: ±0.15 mm
Full 5-axis synchronized kinematic control
Micro-Perforations and Dense Venting
High-frequency short-pulse piercing coupled with real-time thermal compensation prevents localized heat accumulation and wall deformation on thin-walled stainless, aluminum, and titanium tubing for filter or acoustic applications.
Minimum Aperture: 0.8 mm (0.031 in)
Hole pitch uniformity: ±0.03 mm center-to-center
Ultra-Short and Zero-Tailing Scrap Control
Intelligent multi-chuck synchronized gripping sequences hand off raw stock directly through the cutting zone without dead areas. Maximizes total linear stock utilization on high-value alloys and heavy wall structural pipes.
Minimum Tail Remnant: ≤40 mm (Zero-Tailing Optional)
Raw material yield: Up to 99.4% overall
Powered by proprietary CNC kinematics and specialized tube cutting algorithms, Haden laser-cutting machines effortlessly process complex open structural sections and extreme-angle 3D weld bevels. Every cross-sectional geometry is mapped dynamically to optimized laser parameters, delivering uncompromised repeatability and edge fidelity across heavy industrial manufacturing—from high-volume automotive tubular components to architectural truss structures.
End-to-End Tube Processing Solutions for Key Industrial Sectors
Haden delivers specialized tube processing systems engineered to meet the stringent tolerance, cycle time, and surface quality standards of automotive, structural steel, commercial furniture, and heavy machinery manufacturers.
Automotive Tube Manufacturing & Exhaust Systems
Advanced CNC tube laser cutting machines built for high-throughput automotive tube manufacturing, including chassis subframes, hydroformed profiles, exhaust mufflers, and crash management structures. Haden solutions eliminate mechanical die wear, maintain tight hole true-position tolerances before bending, and completely prevent thermal distortion on thin-walled stainless steel and aluminum alloy tubing.
Typical Workpiece Components:
- ✓ Exhaust manifold tubes, downpipes, and catalytic resonators
- ✓ Lightweight tubular chassis subframes and suspension control arms
- ✓ Hydroformed structural members and anti-roll sway bars
- ✓ High-strength steel side-impact and bumper crash beams
Key ROI: Positional accuracy within ±0.05mm, zero thermal distortion on 0.8–2.0mm thin walls, 100% tooling die elimination
Architectural Engineering & Structural Pipe Fabrication
Heavy-duty multi-axis CNC processing for large-scale structural pipe fabrication, space trusses, stadium canopy columns, and bridge assemblies. Haden multi-axis 3D bevel cutting generates precise weld-ready V-, Y-, and K-grooves directly along complex intersecting saddle lines, guaranteeing zero-gap fit-ups that eliminate costly on-site manual grinding and rework.
Typical Workpiece Components:
- ✓ Large-span space frame tubular nodes and intersecting branch joints
- ✓ Heavy stadium support columns and offshore pilings (up to Φ500mm)
- ✓ Tubular bridge arch ribs with multi-planar intersecting profiles
- ✓ Structural hollow sections (SHS/RHS) with pre-cut weld prep bevels
Key ROI: Single-pass ±45° 3D bevel cutting, zero-gap robotic welding fit-up, heavy structural pipe capacity up to 1.5 tons/pipe

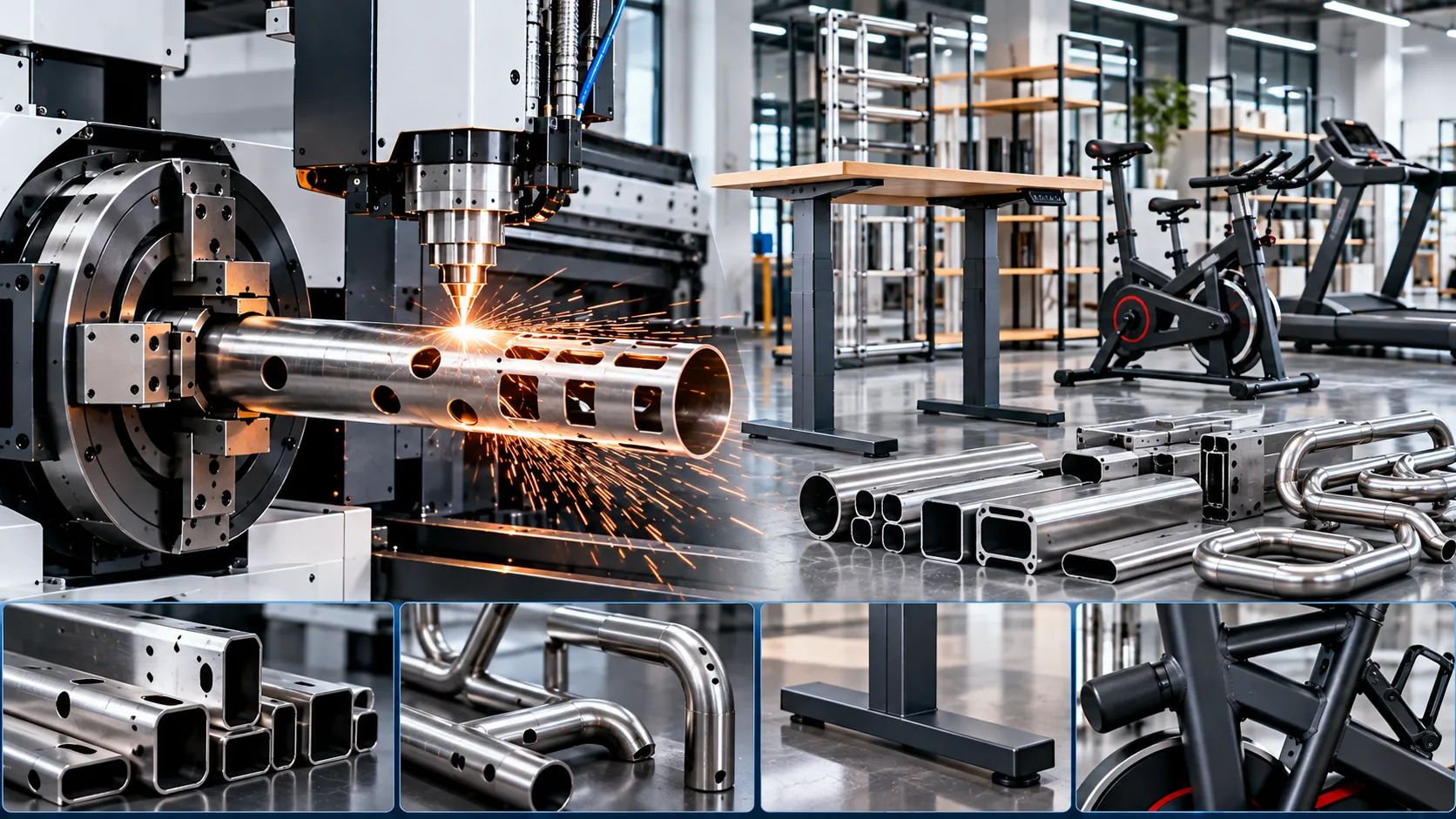

Commercial Furniture & Fitness Equipment
High-efficiency furniture tube systems and adaptable sheet and tube laser cutting machines are designed for ergonomic desk columns, retail display fixtures, commercial spin bikes, and treadmill chassis. Intelligent nesting algorithms dynamically combine mixed-lot production runs to maximize material utilization, while fiber laser precision yields smooth, burr-free edges ready for immediate powder coating.
Typical Workpiece Components:
- ✓ Motorized height-adjustable desk leg assemblies and crossbeams
- ✓ Commercial stationary bike, elliptical trainer, and treadmill frames
- ✓ Heavy-gauge power rack uprights with laser-indexed hole numbering
- ✓ Precision retail display shelving, garment racks, and tubular chair frames
Key ROI: Mirror-smooth cut edges ready for paint, 95%+ material utilization, up to 60% labor savings versus manual sawing
Agricultural Machinery & Heavy Equipment
High-power industrial laser cutting machines engineered for thick-walled seamless alloy tubing, tractor frames, crane boom assemblies, and hydraulic cylinder tubes. Featuring high-rigidity servo-pneumatic chucks and high-capacity fiber laser sources, Haden systems easily master heavy structural alloys, ensuring precise cut squareness and dependable feed stability.
Typical Workpiece Components:
- ✓ Tractor main chassis tubes and rollover protection structures (ROPS)
- ✓ Mobile crane multi-stage telescopic boom sections and outrigger beams
- ✓ Seamless hydraulic cylinder barrels, ports, and rod housings
- ✓ Heavy-duty earthmoving implement linkages and boom arm structural weldments
Key ROI: High-power laser options up to 12kW, thick-wall processing up to 25mm, 99.8% dimensional pass rate on hydraulic ports
Why Industrial Manufacturers Choose Haden Tube Solutions
Application-Specific Kinematics
Precision chuck arrangements, dynamic floating supports, and calibrated CNC parameters tuned specifically to your materials, diameters, and line tempos.
Proven Global Reliability
Hundreds of automated Haden tube processing installations operating continuously across premier fabrication facilities worldwide.
Consolidated Process ROI
Replace sawing, drilling, punching, and deburring with a single automated laser process—cutting overall workflow lead times by up to 70%.
Dedicated Engineering Support
Comprehensive lifecycle service including nesting optimization, fast-turn spare parts dispatch, remote diagnostics, and on-site field training.
Ready to Modernize Your Pipe & Tube Fabrication Workflow?
Share your tube profiles, material grades, wall thickness, part drawings and production targets. Haden application engineers can help evaluate the appropriate machine configuration, cutting process and automation approach for your application.

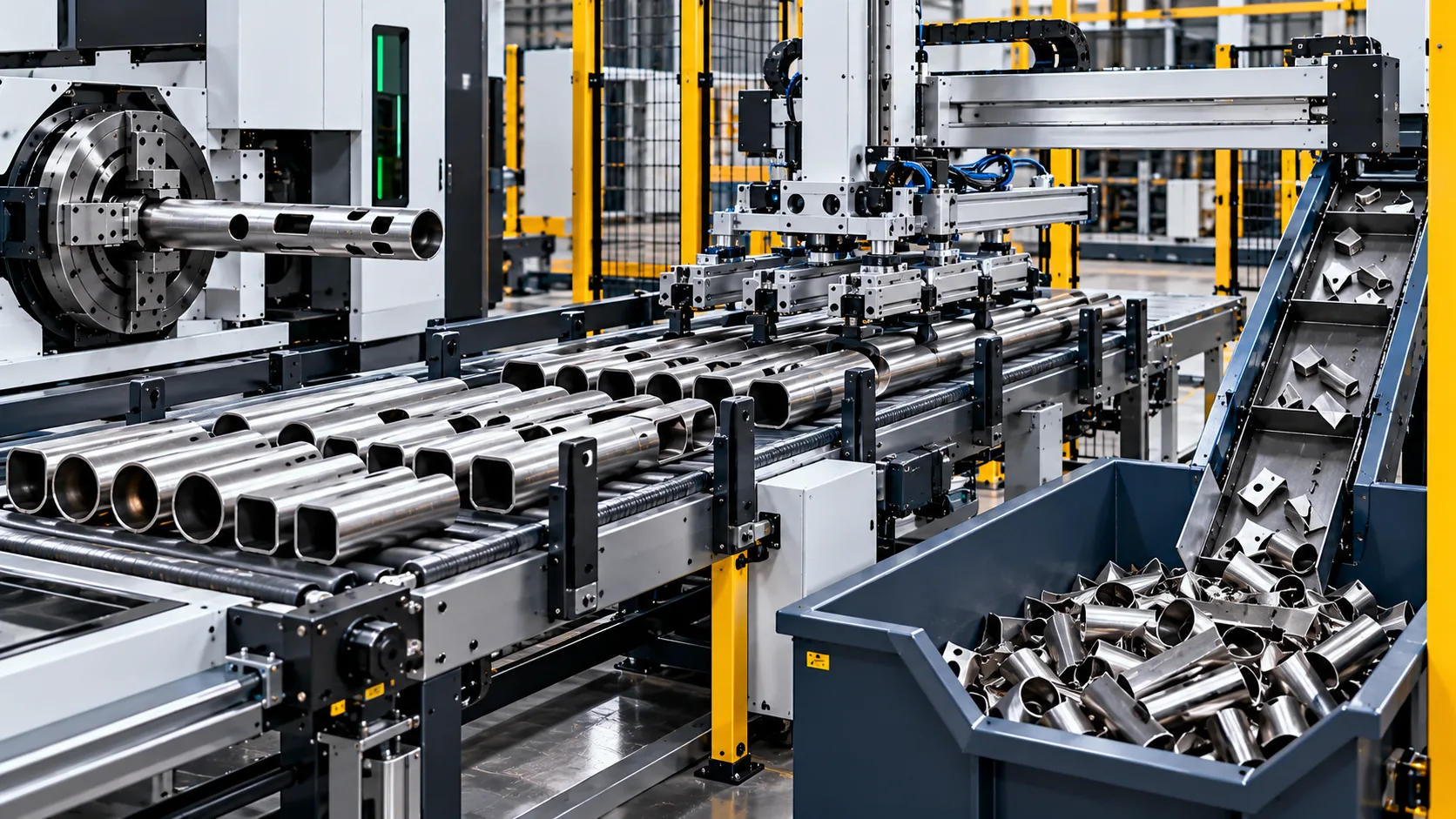

Automatic Tube Bundle Loader and Intelligent Pipe Sorting Architecture
Haden automated tube processing workstations integrate seamlessly with high-performance tube laser cutting machines to eliminate manual handling bottlenecks entirely, delivering uninterrupted 24/7 throughput from raw bundle de-stacking to precision sorted finished parts.
Automatic Bundle Ingestion
Hydraulic de-bundling belts stage and unscramble 3–5 ton pipe bundles, feeding single tubes into the queue automatically.
Weld & Camber Correction
Machine vision identifies weld seams to protect critical cut paths while non-contact sensors compensate dynamically for pipe twist.
Dynamic Pneumatic Clamping
Synchronized self-centering chucks modulate clamping force continuously, securing heavy loads while guarding thin-wall tubes.
Multi-Axis Laser Execution
Engineered for industrial laser cutting machines, high-dynamic laser heads with capacitive height tracking execute rapid piercing, 3D beveling, and clean profile cuts.
Servo Follower & Sorting
Servo-driven follower supports prevent long pipe deflection while automatically sorting finished parts, trim cuts, and scrap.
High-Throughput Tube Unloading Automation and Scrap Management
Engineered for round, square, open channel, and custom structural profiles across dedicated cells or hybrid sheet and tube laser cutting machines. Haden integrates automated raw material bundle loading with precision multi-station unloading to keep laser beam-on time consistently above 92%.
Zero Sagging Support
Servo-synchronized lifters follow dynamic cutting profiles up to 12 meters.
Automated Scrap Discharge
Remnant tailings and slug cutoffs drop directly into scrap bins without interruption.
Weld Avoidance Logic
Machine vision tracks weld lines and re-indexes cutting paths automatically.
Continuous Staging Ingestion
Stage secondary tube bundles on hydraulic racks while active jobs run at full speed.
Cell Operating Mode
Continuous Lights-Out Cycle
Tube Cutting Machine Specifications, Chuck Capacity & Laser Power Selection Guide
Selecting the optimal industrial CNC pipe fabrication system requires precise alignment of chuck capacity, laser resonator output, material wall thickness, and downstream weld preparation specs. Haden provides this technical sizing framework to assist plant engineers, fabricators, and production planners in configuring tube laser cutting machines matching their exact throughput and dimensional requirements.
Select an operational tier to review matching hardware capabilities and performance thresholds:
Industrial Tube Laser Cutting Machine Technical Specifications
Comparative matrix outlining chuck capacity, laser power sizing, wall thickness limits, and tailing scrap control.
| Key Technical Parameter | Compact Series | Standard Production | Heavy Industrial | Ultra-Heavy Matrix |
|---|---|---|---|---|
| Outer Diameter (OD) Envelope Round, square, rectangular, and open profiles |
Φ20 – Φ120 mm □ 20×20 to 100×100 mm |
Φ20 – Φ230 mm □ 20×20 to 160×160 mm |
Φ50 – Φ350 mm □ 50×50 to 250×250 mm |
Φ50 – Φ500 mm □ 50×50 to 400×400 mm |
| Fiber Laser Power Selection Continuous-wave solid-state laser source | 1,500W – 3,000W | 3,000W – 6,000W | 6,000W – 12,000W | 6,000W – 15,000W |
| Chuck Capacity & Kinematics Self-centering actuation & clamping control |
Dual High-Speed Pneumatic Full-stroke self-centering |
Dual Full-Stroke Pneumatic Regulated proportional pressure |
Triple Synchronized Pneumatic High radial load bearing package |
Four-Chuck Servo-Electric Dynamic dual-motion synchronization |
| Scrap Tailing Remnant Control Minimum uncut remnant drop length |
≤ 70 mm Short tailing mechanical stop |
≤ 80 mm Dual-chuck optimized nesting |
≤ 40 mm Triple-chuck pull-through cycle |
Near-Zero (≤ 0–35 mm) Four-chuck continuous pass-through |
| Raw Stock Loading Length Standard automated feed bed envelopes | 6,500 mm (21.3 ft) | 6,500 – 8,000 mm (26.2 ft) | 9,000 – 12,000 mm (39.4 ft) | 12,000 – 14,000 mm (45.9 ft) |
| Maximum Workpiece Payload Single raw profile dynamic load limit | 150 kg (330 lbs) | 300 kg (660 lbs) | 800 kg (1,760 lbs) | 1,800 kg (3,960 lbs) |
| Maximum Wall Thickness Carbon steel (CS) / Stainless steel (SS) | CS: 8 mm / SS: 4 mm | CS: 14 mm / SS: 8 mm | CS: 25 mm / SS: 16 mm | CS: 30 mm / SS: 20 mm |
| 3D Bevel Cutting Capability Five-axis head for weld prep (±45°) | Not Applicable (2D Cutting Only) | Optional (±45° Articulating Head) | Standard / High Recommendation | Standard (Five-Axis Kinematic Suite) |
| Material Grade Compatibility Ferrous, structural, and reflective alloys | Carbon Steel, Stainless, Thin Aluminum, Brass | Mild Steel, Stainless, Galvanized Pipe, Aluminum, Copper | High-Tensile CS, Thick Stainless, Structural Alloys, Titanium | Heavy Seamless Pipes, Boiler Tubes, Q345/Q460 High-Strength Steels |
Selected Focus: Compact Precision Series (Φ20–120 mm)
Optimized for high-cadence fitness hardware, medical instruments, automotive exhaust lines, and light furniture frames. Features low inertia chuck rotation reaching up to 150 RPM with rapid acceleration up to 1.5G.
3-Stage Engineering Selection Strategy for Pipe & Tube Fabrication
Evaluating capital equipment for pipe and profile manufacturing requires balancing geometric dimensions, metallurgical thickness, dynamic acceleration, and downstream assembly requirements. Apply these three engineering benchmarks when selecting industrial laser cutting machines to configure your production cell.
Pipe Laser Power Selection & Assist Gas Dynamics
Laser wattage directly determines linear feed rates, piercing dwell times, and maximum wall penetration. For high-volume thin-wall fabricators (≤3 mm), 1,500W to 3,000W delivers maximum electrical efficiency. For structural tube fabrication (3 mm to 12 mm wall), 4,000W to 6,000W+ fiber sources provide high-velocity nitrogen or compressed-air processing.
- ✓Oxygen Assist: Low-pressure exothermic piercing on heavy-wall mild steel
- ✓Nitrogen Assist: Oxide-free, ready-to-weld edges on stainless & aluminum
- ✓High-Pressure Air: Ultra-low operational cost for rapid carbon steel cutting
Chuck Capacity, Grip Geometry & Follower Support
Selecting between full-stroke self-centering pneumatic chucks and servo-electric dual-motion chucks depends on cross-sectional diversity and surface sensitivity. For facilities handling both flat plate and hollow structural sections, dual-purpose sheet and tube laser cutting machines provide versatile batch processing. Thin-walled aluminum and sanitary stainless tubing require programmable clamping force regulation and non-marking polymer jaws to eliminate crush distortion and cosmetic marring.
- ✓Dual Chucks: Rapid cutoff & high-speed nesting with ≤80 mm tailing remnant
- ✓Triple Chucks: Full-bed continuous clamping with minimal ≤40 mm scrap drop
- ✓Servo Followers: Dynamic anti-sag supports prevent deflection across 12 m lengths
3D Five-Axis Beveling & Weld Fit-Up Integration
When structural tubing, trusses, and off-highway equipment require multi-pass automated welding, integrating a ±45° five-axis 3D laser bevel head completely eliminates manual edge grinding. The system executes complex V, Y, K, and variable bevel profiles directly during the primary cut cycle for zero-gap assembly.
- ✓Self-Locating Joints: Precision mortise-and-tenon interlocks for rapid staging
- ✓Saddle & Intersecting Cuts: Micro-gap copes for structural space frame joints
- ✓Zero-Gap Robotic Prep: 100% automated weld readiness without secondary milling
Custom CAD/CAM Cycle Time Simulation & Equipment Sizing
Haden application engineers analyze your native 3D CAD files (STEP, IGES, and SAT) to execute full production cycle simulations prior to machine build. We evaluate chuck gripping concentricity, fly-cutting kinematic paths, weld seam optical detection vectors, and linear nesting optimization to calculate cycle times down to the fractional second.
Configure Around Your Actual Tube Profiles
Match profile geometry, wall thickness, stock length, laser power, chuck architecture and automation level before selecting the machine platform.
Precision Metrology Standards & Global Fabrication Support
Haden ensures long-term tube cutting precision across our high-performance tube laser cutting machines through thermal stress-relieved machine beds, dual-beam laser interferometer calibration, and responsive worldwide technical field support.
High-temperature heat treatment eliminates internal welding stresses, guaranteeing structural rigidity and geometric stability under continuous multi-shift production.
Multi-axis kinematic positioning and chuck rotational accuracy are individually calibrated with dual-beam optical laser interferometers for traceable precision.
Every machine undergoes multi-material endurance test cuts, bevel angle verification, and comprehensive factory quality inspection protocols before final sign-off.
Engineered in full compliance with the European CE Machinery Directive, ISO 9001 quality systems, and FDA/CDRH laser radiation safety requirements.
Lifecycle Engineering Support & Technical Field Service
Haden safeguards production uptime with a responsive, decentralized service network across all industrial laser cutting machines. From on-site machine commissioning to remote IoT diagnostics, our field engineers keep your automated tube fabrication cells operating at peak output.
Strategic Spare Parts Logistics
Regional spare parts hubs provide rapid dispatch of critical chuck assemblies, laser optics, and servo components.
Remote IoT Telemetry Diagnostics
Real-time CNC parameter tracking and predictive monitoring identify maintenance needs before downtime occurs.
Factory Field Commissioning
Certified field engineers oversee leveling, optical alignment, chuck calibration, and test cutting on your plant floor.
Tailored Operator Training
Practical training covering 3D CAD/CAM nesting software, weld seam tracking setup, and daily preventive maintenance for specialized systems and sheet and tube laser cutting machines.
Multi-axis dynamic calibration certificates are generated prior to equipment handover, verifying that linear and rotary chuck movements conform to ISO machine tool tolerances.
Tube Processing Engineering & CNC Physics FAQ
Explore detailed engineering solutions to common industrial pipe fabrication challenges. From dynamic warp compensation and internal dross mitigation to reflective alloy beam safety and multi-chuck zero-tailing kinematics, discover how Haden tube laser cutting machines deliver repeatable precision across structural, automotive, and high-purity tubular components.
Dynamic 3D Offset
Continuous optical surface measurement compensating for raw tube camber, ovality, and twist in real time.
≤ 40 mm Tailing
Triple-chuck and four-chuck synchronized shuttling delivering near-zero scrap remnant cutoffs on expensive stock.
Spatter Extraction
Synchronized internal suction and anti-dross barrier dosing protecting interior wall bore cleanliness.
Native 3D Nesting
Direct STEP, IGES, and SolidWorks model ingestion supporting common-line cutting and smart joint interlocking.
01
How does the system maintain hole and cutoff accuracy when raw pipes are bowed or twisted?
Commercial mill-run tubing frequently presents dimensional inconsistencies, longitudinal bowing, cross-sectional ovality, and rotational twisting. Haden overcomes these physical deviations using an integrated, multi-tier closed-loop compensation strategy:
- Non-Contact Optical Profilometry: High-speed optical sensors scan the external tube perimeter at designated rotational increments, establishing the actual physical centerline rather than relying on theoretical CAD nominal axes.
- Dynamic Servo Follower Supports: Multi-point mechanical servo support rollers actively track, elevate, and stabilize elongated tubes, eliminating gravitational sag and rotational centrifugal runout during high-speed indexing.
- Real-Time Coordinate Transformation: The CNC interpolates cutting head stand-off height and rotational angles simultaneously, ensuring hole arrays, intersecting saddle branches, and cutoffs maintain sub-millimeter positional tolerance regardless of raw stock warpage.
This continuous dynamic alignment eliminates the need for labor-intensive manual pre-straightening while guaranteeing tight joint fit-up for downstream automated welding.
02
How is molten slag and dross prevented from adhering to the inside wall of the pipe?
During high-temperature piercing and profiling, molten metal spatter naturally blows across the internal cavity, bonding to opposing inner walls. To protect inner bore integrity and eliminate costly secondary deburring or reaming, Haden deploys synchronized internal protection systems:
Anti-Spatter Micro-Fluid Barrier
An automatic internal dosing lance applies an ultra-thin, water-soluble barrier inside the tube before piercing, preventing molten slag micro-welding on inner walls.
Synchronized Vacuum Core Evacuation
A trailing internal suction module tracks directly beneath the active cutting focal zone, evacuating airborne debris and hot sparks into a dedicated filtration cyclone.
This ensures processed tubular components meet stringent sanitary piping, hydraulic fluid line, and automotive exhaust cleanliness specifications straight out of the cutting cell.
03
Is there a risk of optical back-reflection damage when cutting reflective alloys like copper, brass, and aluminum?
Non-ferrous materials exhibit high specular reflectivity at standard 1.07 µm fiber laser wavelengths. If unmanaged, reverse-propagating beam energy can enter the delivery optical fiber and damage laser resonator modules. Haden safeguards the complete optical path via triple-layer defense mechanisms:
- Hardware Optical Isolators: Laser resonator modules incorporate hardware-level optical Faraday isolators and protective beam dump diodes, safely dissipating reverse reflection into liquid-cooled heat sinks.
- Frequency-Modulated Pulse Piercing: Tailored low-frequency, high-peak-power piercing cycles quickly break surface reflectivity and establish a stable molten keyhole before switching to full continuous-wave cutting.
- Optimized Gas Assist & Dynamic Focus: Pre-loaded process parameter databases automatically govern high-pressure nitrogen assist dynamics and beam focus offsets, achieving smooth, burr-free cuts on yellow metals without resonator strain.
04
How do multi-chuck kinematic systems mechanically achieve zero or ultra-short tailing waste?
Conventional two-chuck machines require an unmachined tail grip zone, leaving 150 mm to 300 mm of unusable scrap on every pipe. Engineered for high efficiency across dedicated systems and dual-purpose sheet and tube laser cutting machines, Haden utilizes multi-chuck synchronized kinematic shuttling to pass the raw stock completely through the cutting envelope:
| Chuck Architecture | Mechanical Grip Cycle | Remnant Scrap Length | Target Application |
|---|---|---|---|
| Standard Dual Chuck | Stationary front chuck + travelling rear chuck | ≤ 120 mm – 150 mm | General tubular framing, standard mild steel |
| Triple-Chuck Shuttling | Middle chuck handoff passes stock through cutting plane | ≤ 40 mm (Ultra-Short) | Stainless steel, copper, structural hollow sections |
| Four-Chuck Modular Line | Full pass-through bidirectional cross clamping | ~ 0 mm (True Zero Tailing) | Heavy structural beams, high-value aerospace alloys |
By coordinating intermediate chuck release and forward handoffs while maintaining full rotational synchronization, expensive parent stock is cut to the absolute terminal edge.
05
Does the software workflow support direct 3D CAD/CAM model import and automated profile nesting?
Yes. Haden tube processing systems integrate native parametric 3D CAD/CAM software suites that eliminate manual 2D drawing unfolding and intermediate file conversions:
- Direct 3D CAD Ingestion: Import assemblies and single parts directly in standard STEP, IGES, SAT, and native SolidWorks formats without geometry loss or flattening errors.
- Intelligent Joint & Interlocking Generation: Automatically generate tab-and-slot connections, self-fixturing saddle joints, and bend-relief notches that speed up manual assembly and fixtureless welding.
- High-Yield Linear Nesting: Optimizes mixed part production schedules with automated common-line cutting, remnant tracking, and continuous lead-in paths, consistently driving material yield above 95%.
Operators simply load the assembly file, define available raw bar lengths, and output verified CNC code complete with material-specific laser parameters from Haden's built-in cutting database.
Find the Right Tube Cutting Machine for Your Application
Tell us what you need to cut. Our application engineers will review your tube specifications and recommend a suitable machine configuration for your production requirements.
Send Us Your Tube Requirements
You don't need to know the exact machine model. Just tell us your tube size, material, wall thickness and production requirement.
Share Your Application
Tube profile, material, dimensions and production needs.
Engineering Review
We match the cutting range, laser power, chuck system and automation level.
Receive a Recommended Configuration
Review the proposed machine configuration and quotation with our team.
Request a Machine Recommendation
A few basic details are enough to get started.
